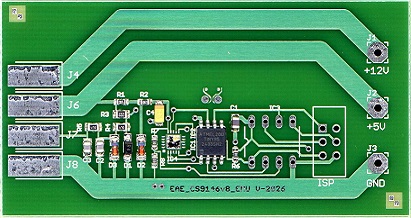

Electronic module ECBCS9146_G3v8

Description

Electronic module ECBCS9146_G3v8 is designed to work with the G3 AED 9146 battery.
It contain an integrated microcontroller that automatically stores important usage information, enabling the battery to maintain a complete history of its operating life.

This includes:

• Battery identification
• Battery type
• Original date of installation in an AED
• Number of charges completed
• Time in operation (hrs : min)
• Days of standby operation
• Battery capacity remaining

• Electrical parameters of the battery controller

  VDD Supply voltage range	4 … 5.5 V
  Standby current consumption. VDD=5V	3,2 mA
  Current consumption during transmission VDD=5V	10…12 mA
  Standby current consumption. VDD=4V	2,3 mA
  Current consumption during transmission VDD=4V	8…9,9 mA
