Description

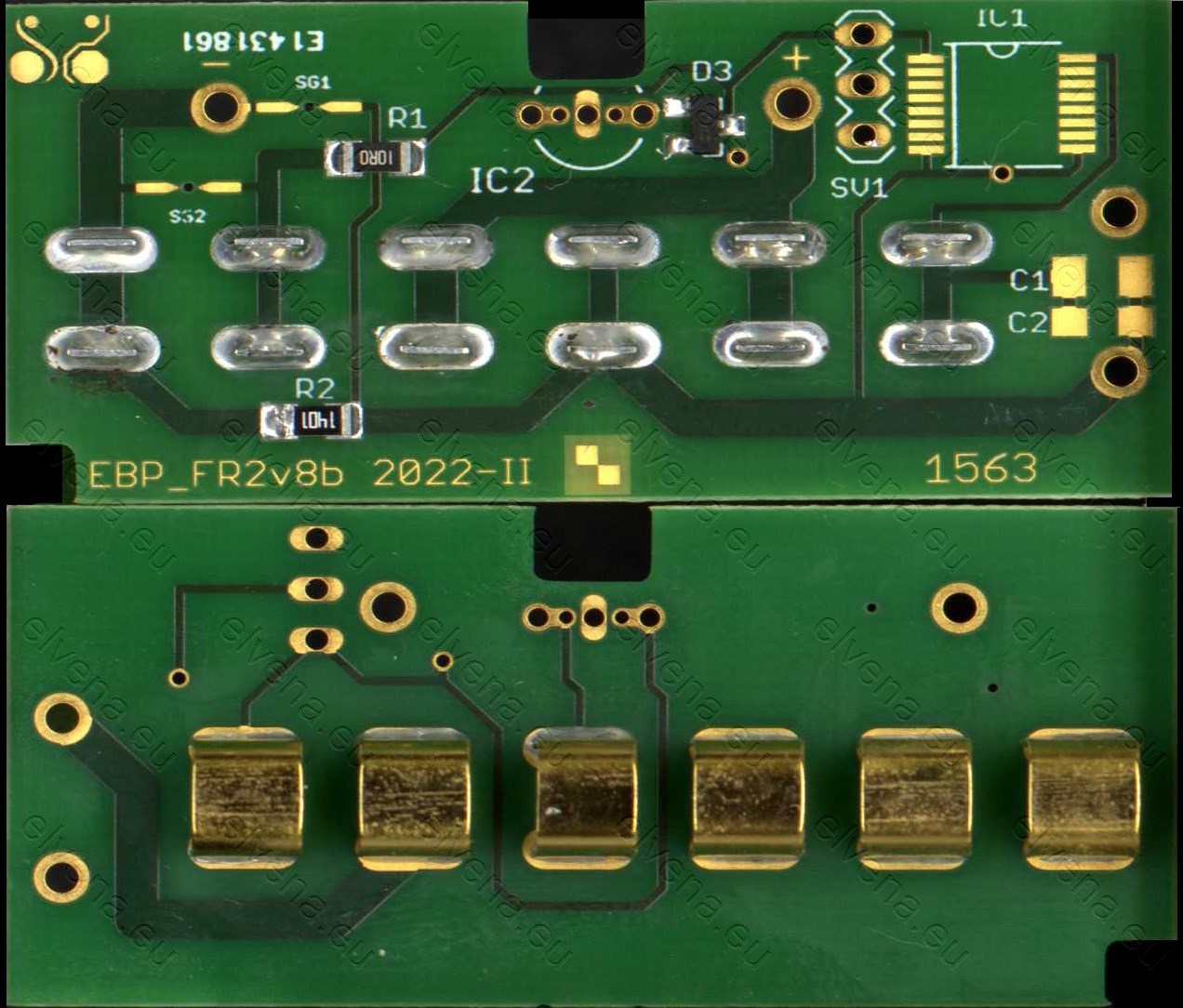

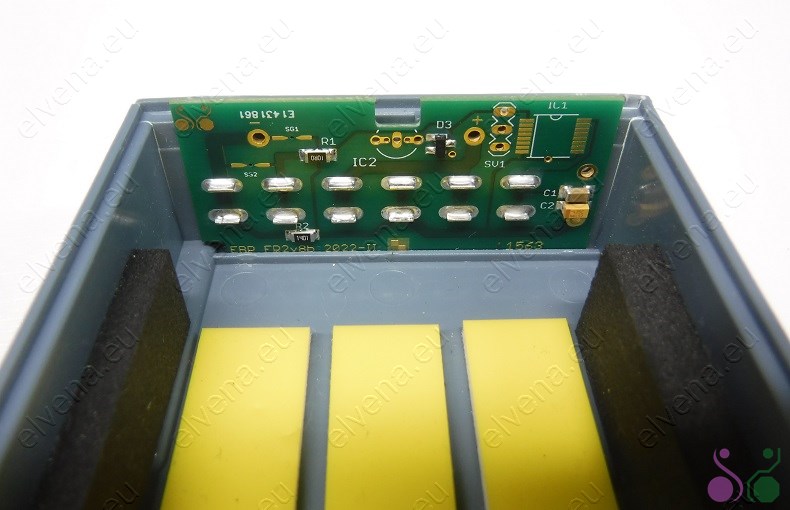

Base printed circuit board with contacts, designed for the FR2 AED 9146 type battery.
This is a special version with contacts raised an additional 0.3 mm above the PCB surface.
To ensure full functionality of this board in the battery, a DS24xx integrated circuit or emulator module (sold separately) must be installed.
Board dimensions:
- Laminate thickness: 1 mm
- Length: 53.3 mm
- Width: 25.2 mm
- Total height: 11.3 mm,
- Height of contacts above the PCB surface: 8.8 mm
Weight: 5.3 g
